Description

1 meter pixel led bar rgb  pixel stage light stage event light DJ night club decoration black cover

Brilliant and bright colours come to you with the LED rigid bar. Clubs, bars, shops and stages are the ideal locations for this slender instrument. It is also the perfect device for interesting light creations in your own rooms. LEDs have a high performance, are very bright and shed a strong and intense light. This is naturally also true for the LED rigid bar. This is only a fraction of LED’s longevity, which can bring you approx 50000 hours of light. The LEDs in the LED rigid bar consume only little energy. Additionally, they dissipate only little heat. This is not only good for your energy balance, it is also good for the environment.

Applications

1. Holiday decoration lighting, Christmas party, holiday time, anywhere you want to produce a particularly eye-catching display.
2. Market Engineering lighting, architectural decoration, decoration of trees along streets, parks, urban night lighting.
3. Attractions landscaping, gardening, community night crystal decoration, hotels, shopping malls, night entertainment.

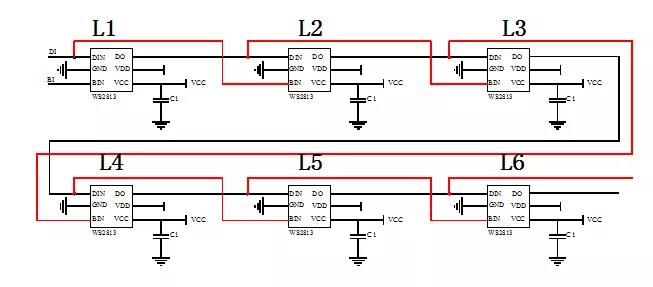

Product Diagram

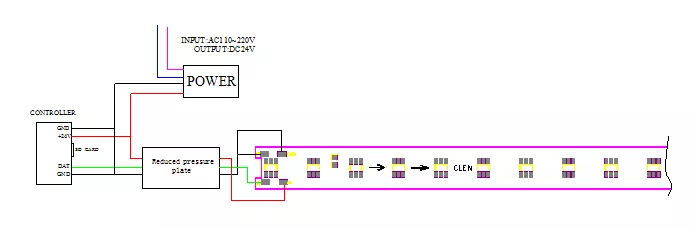

Wire connections diagram

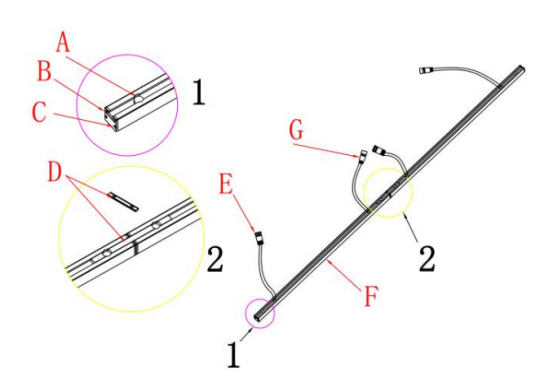

Installation diagram

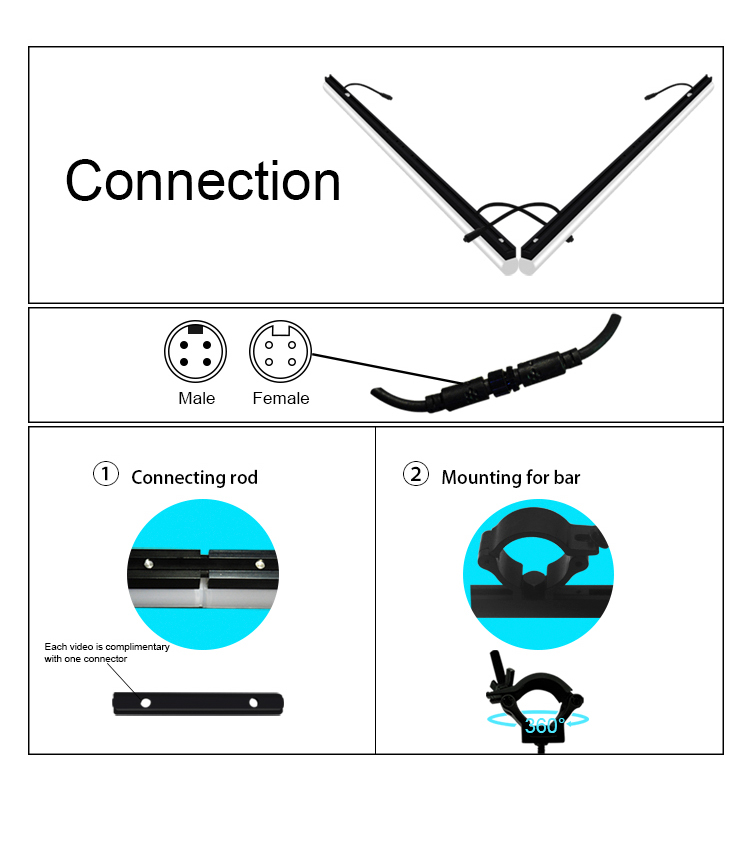

Installation

1. Input: at the needle side.Output: at the hole side.
2. DI of strip connect the DO of controller
3. If the strip is more than 10M, need a signal amplifier to increase the transmit-ability
4. Special design between 2 strips which realize seamless integrate.
5. The lamp holder can be fixed by the internal sliding bar of the bottom sliding groove.

Note

1. Please choose our DVI control box for installation of the project.
2. Controller with 8 out port,each out port control 512 pixels
3. Power supply and controller inside the control box, the strip connect the output of controller,no need extra driver.

Advantages

1. SPII Control Mode
2. SK6812 single signal transmission
3. Single led per single pixel point Serial tansimission
4. Seamless Connection
5. Break point Continuous
6. Without voltage drop even if several joint
